Securit White Plastic Louvre Vent 9 x 3 Inch - Removable Flyscreen

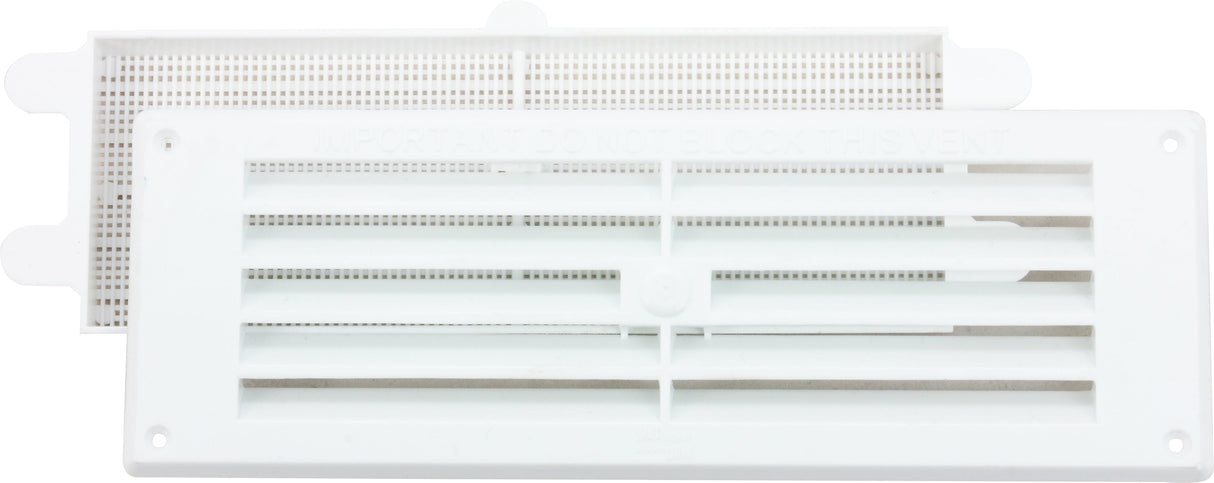

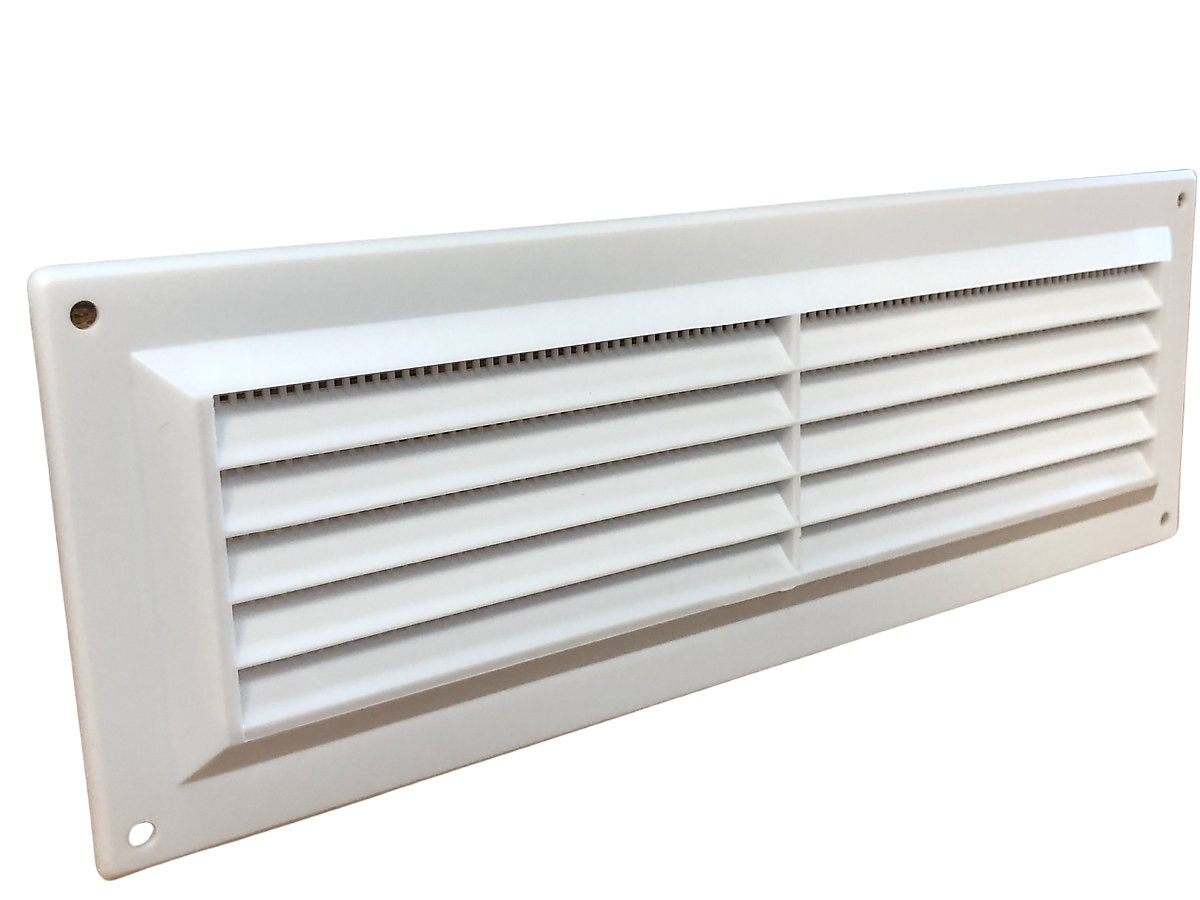

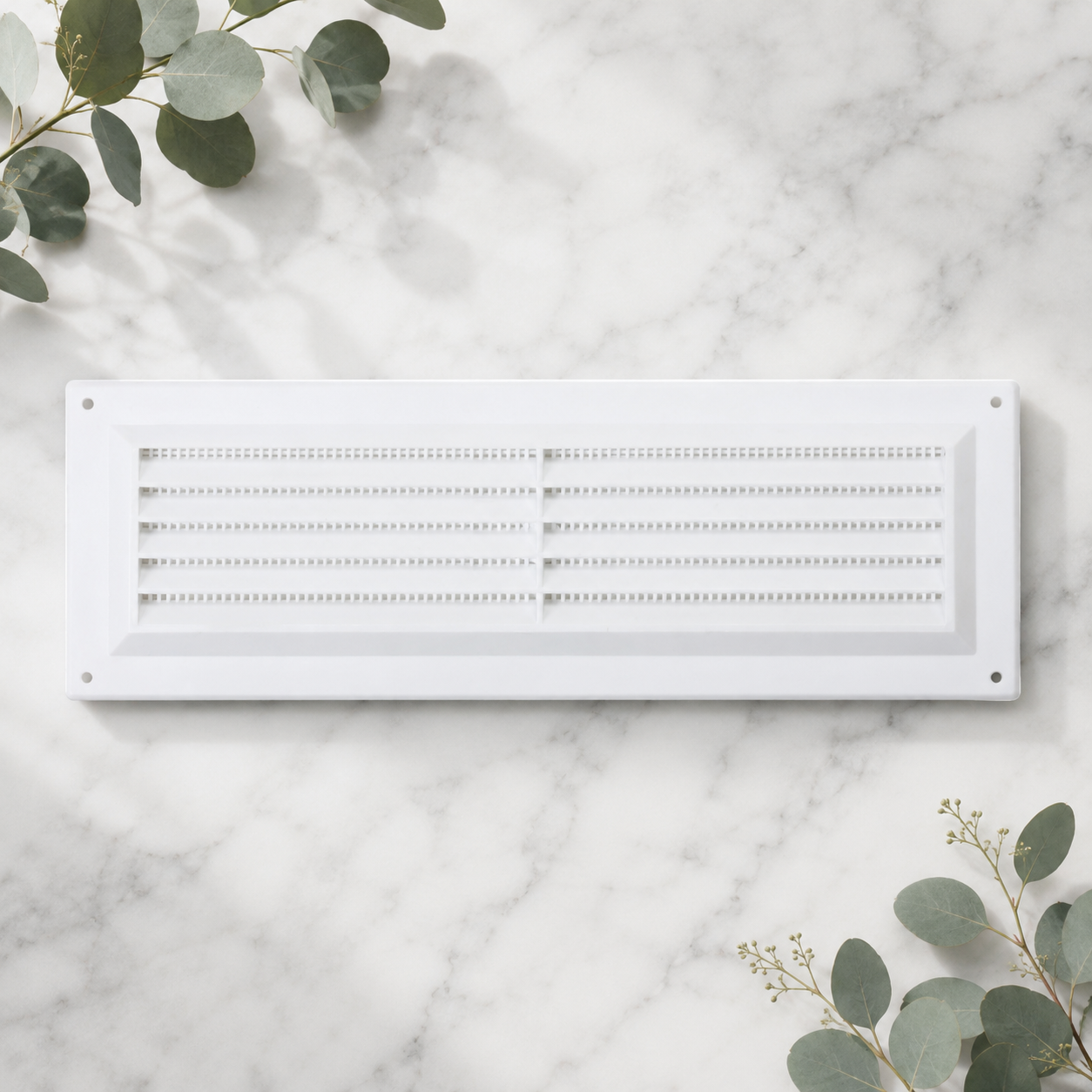

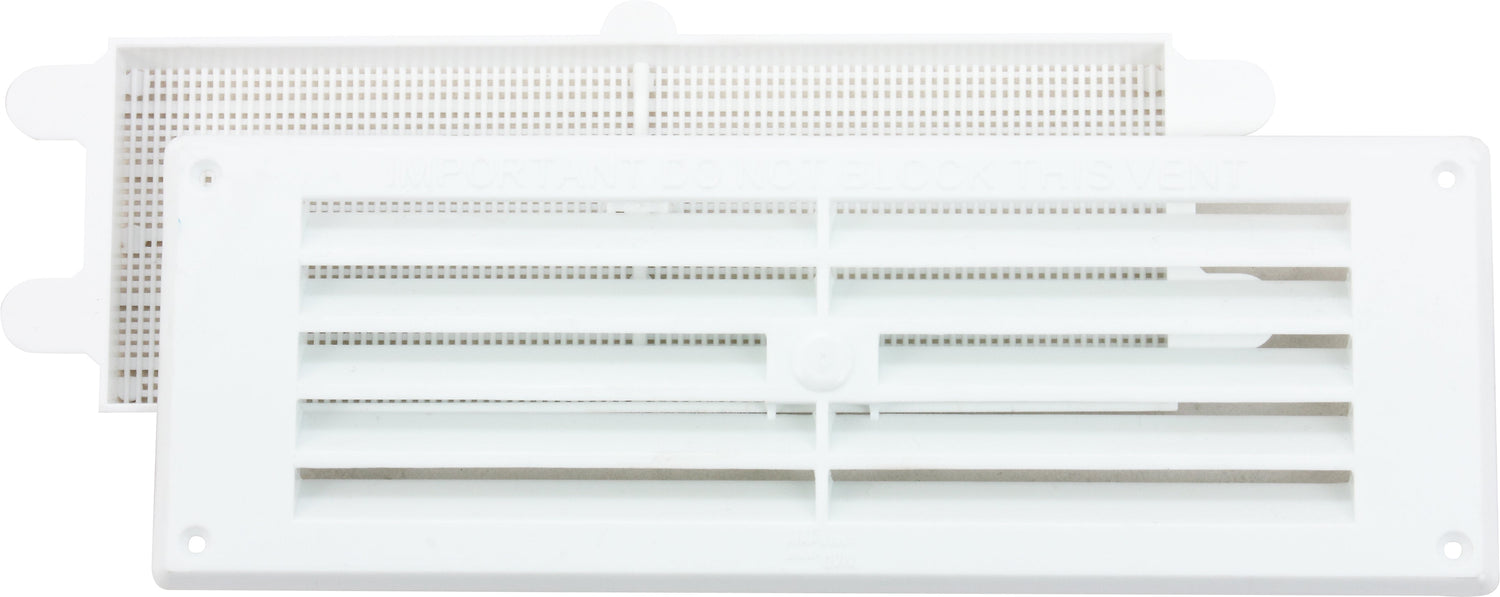

This Securit louvre vent is a white plastic ventilation cover designed to fit a single brick course opening (9 x 3 inch) in a wall, door or duct. Like all louvre vents, it uses a series of angled slats, set between 30 and 45 degrees, that let air pass freely through the opening in both directions while shedding wind driven rain and stopping larger debris from getting in. It is a straightforward way to add background ventilation to a room, void or appliance space without letting the weather in.

Key Features

• Durable white plastic construction that will not rust, rot or need painting
• Compact 9 x 3 inch size, sized to a single standard brick course
• Removable flyscreen that clips out of the frame for proper cleaning, then clips straight back in
• Free air space of 7500 sq mm, the actual open area available for airflow through the vent
• Marked suitable for venting gas appliances

The free air space is always smaller than the overall size of the vent because the slats and frame take up some of the opening, and it is the free air space figure, not the outer dimensions, that matters when checking a vent against building regulations. UK Approved Document C calls for background ventilation of suspended timber floors of at least 1500 sq mm per metre run of wall, or 500 sq mm per square metre of floor area, whichever is greater, with vents fitted on at least two opposite sides of the building for cross ventilation.

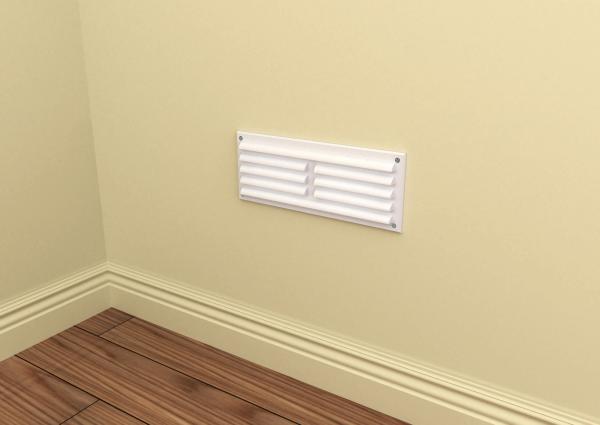

How to Fit a Louvre Vent

If you are replacing an existing cover on a terracotta or airbrick frame, this is a straight swap. Unscrew or unclip the old cover and fit this vent in its place using the same fixing holes, so there is no need to disturb the brickwork around it.

If you are fitting into a brand new opening in a solid wall, chisel or drill out the mortar to the size of the vent frame, bed the vent onto fresh mortar and tap it flush with the wall face, then point the joint around the edge to match the surrounding brickwork.

How to Clean the Flyscreen

Because this is a removable flyscreen, it clips out of the vent frame so it can be lifted out completely, cleaned properly of dust, cobwebs and debris, and then clipped back into place. This makes it a better choice than a fixed flyscreen, which is riveted into the frame and can only be wiped clean while still fitted, in dustier locations such as sheds, garages and outbuildings.

Technical Specification

• Size: 9 x 3 inch (one brick course)
• Free air space: 7500 sq mm
• Material: white plastic
• Flyscreen: removable, clip out for cleaning
• Gas appliances: suitable
• Colour: white

Frequently Asked Questions

What is a louvre vent?
A louvre vent is a ventilation cover made of angled slats fitted into a wall, door or duct opening. The angled slats let air pass through in both directions while shedding wind driven rain and keeping out larger debris.

How do you clean a louvre vent?
Wipe down the outer louvre slats with a damp cloth, then unclip the removable flyscreen from the frame, clean off any dust and debris, and clip it back in once dry.

What is the difference between a fixed and a removable flyscreen vent?
A removable flyscreen, like the one on this vent, clips out of the frame so it can be properly cleaned and refitted. A fixed flyscreen is riveted into the frame permanently and can only be wiped clean while still in place.

How do you fit a louvre vent to a terracotta frame?
Unscrew or unclip the old cover from the existing terracotta or airbrick frame and fit this vent in the same fixing holes, so it is a simple like for like replacement.
