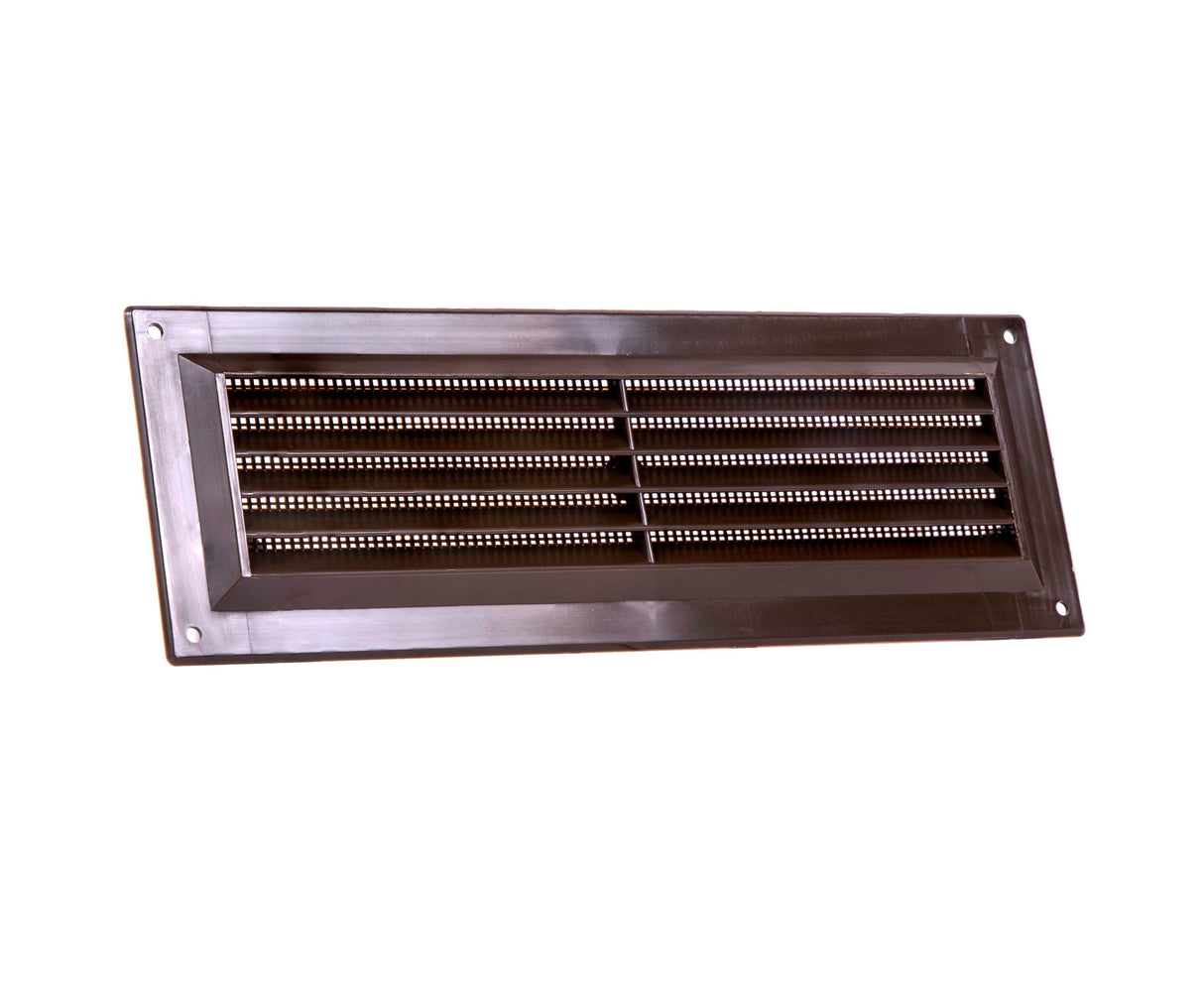

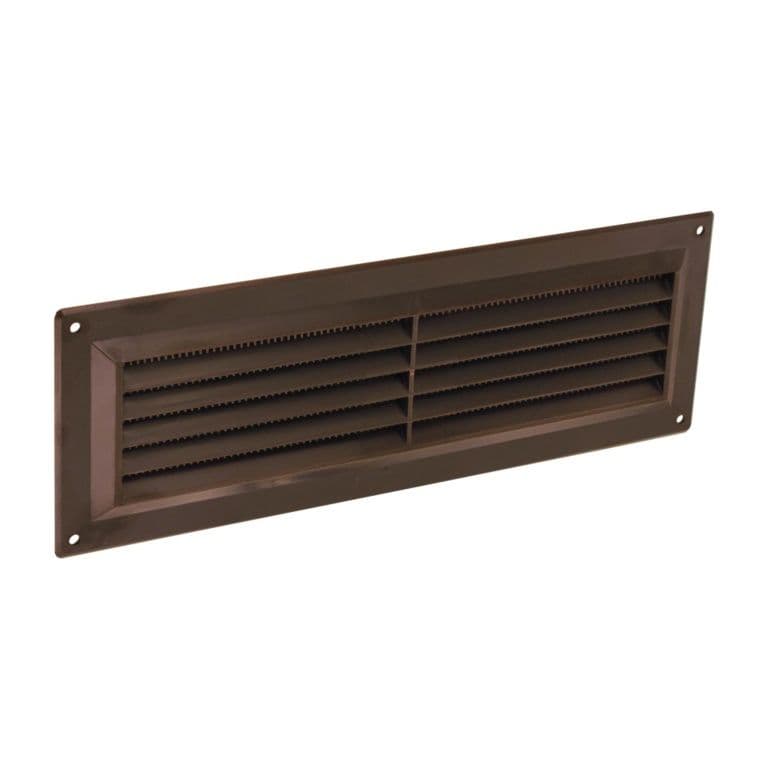

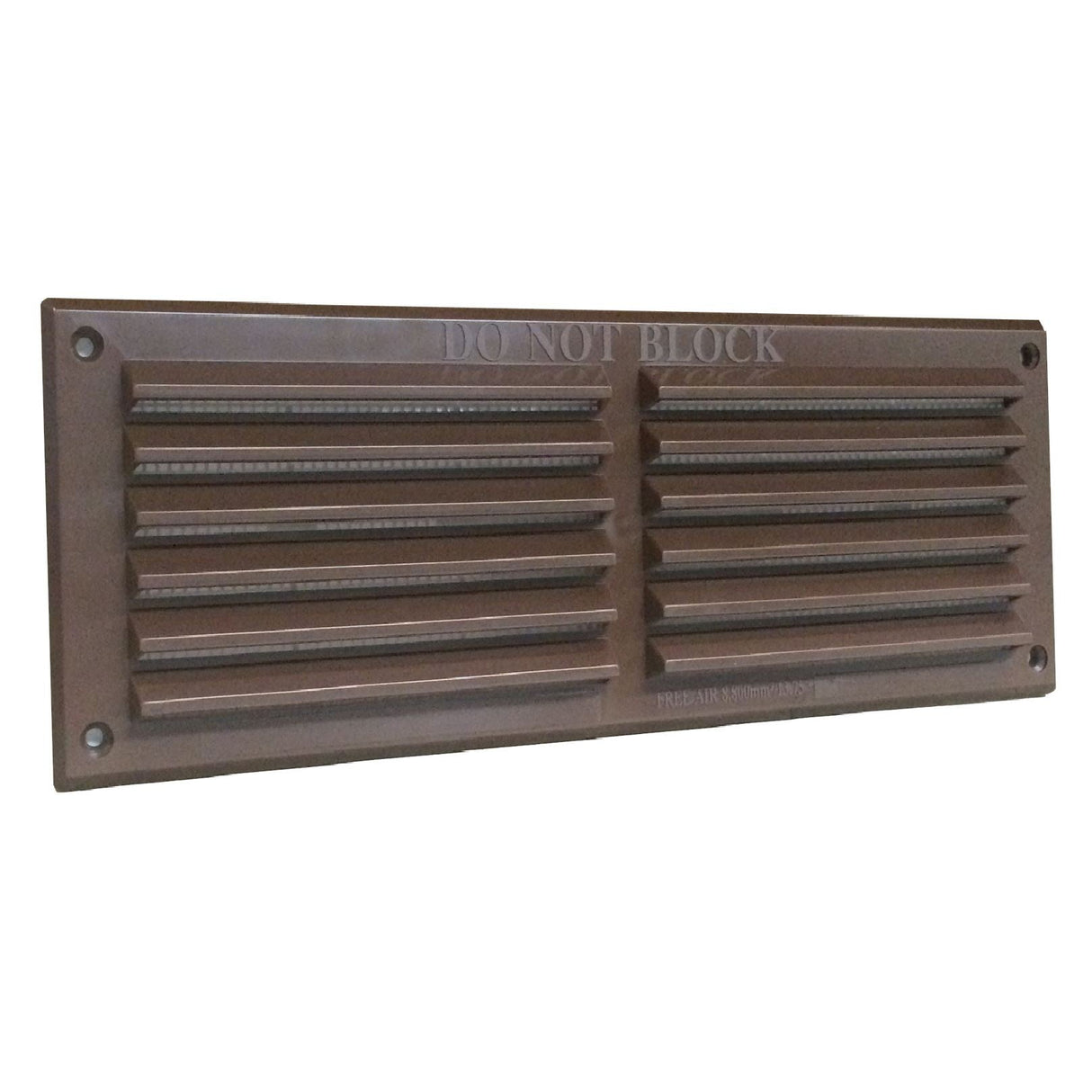

Securit Brown Plastic Louvre Vent 9 x 3 Inch - Fixed Flyscreen

This Securit brown plastic louvre vent is a 9 x 3 inch ventilation cover sized to fit a standard single brick course opening. Like all louvre vents, it uses angled slats, set between 30 and 45 degrees, to let air pass through in both directions while shedding wind driven rain and keeping out larger debris. It is commonly used for airbricks, subfloor ventilation, sheds and utility spaces around the home.

Key Features

• Brown plastic construction that blends in with darker brickwork, doors and fascias
• Angled louvre slats for effective two way airflow and weather protection
• Fixed flyscreen riveted into the vent, which cannot be removed and is simply wiped clean in place, keeping flies and larger insects out
• 9 x 3 inch size, sized to cover a single brick course opening
• Free air space of 4400 sq mm, the actual open area air can pass through and the figure used for UK Approved Document C ventilation calculations
• Not suitable for venting gas appliances, as plastic is not rated to sit close to flue heat, an aluminium vent should be used instead

How to Use and How to Fit

If you are replacing an existing vent that is already set into an airbrick or terracotta frame, simply unscrew or unclip the old cover and fit this vent in its place using the same fixing holes, so no extra drilling is normally needed.

If you are creating a brand new opening in a solid wall, chisel or drill away the mortar to the correct size for the vent, bed the vent onto fresh mortar and tap it flush with the surrounding brickwork, then point the joint around the edge once set to match the existing wall finish.

Technical Specification

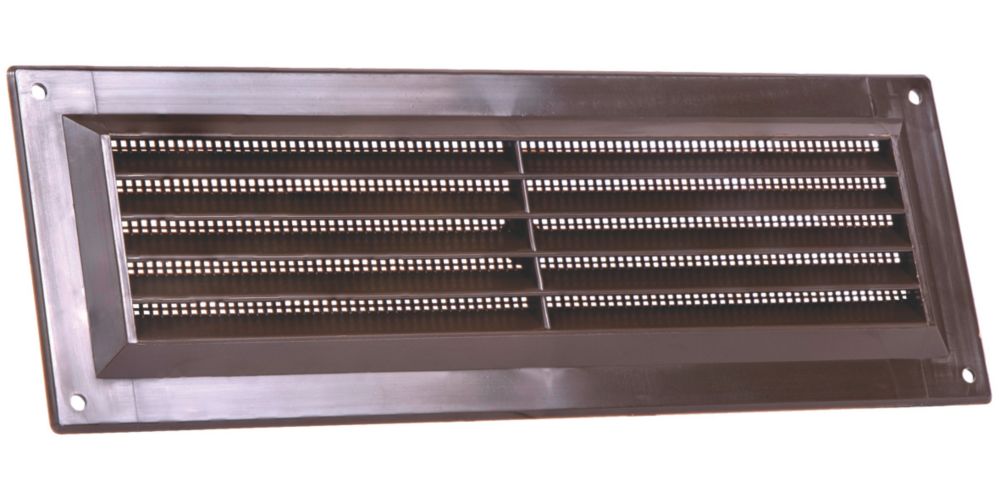

• Size: 9 x 3 inch, approximately 229 x 76mm aperture, one brick course
• Colour: Brown
• Material: Plastic
• Free air space: 4400 sq mm
• Flyscreen: Fixed, riveted in place, not removable
• Gas appliances: Not suitable, use an aluminium vent for gas appliance ventilation

Frequently Asked Questions

Do louvre vents leak? A correctly fitted louvre vent is designed to shed wind driven rain thanks to its angled slats, which direct water back outward rather than into the building. Leaks are usually down to poor fitting or a damaged seal around the vent rather than the vent itself.

Will a louvre vent keep out mice? The fixed flyscreen on this vent stops flies and larger insects, but it will not stop mice or other rodents from getting through. If rodent proofing is needed, look for a vent that includes a dedicated fine rodent mesh.

Will using louvre vents in a shed stop damp and mould? Good background ventilation from louvre vents helps air circulate and moisture evaporate, which reduces the conditions that damp and mould need to take hold. Vents work best when fitted on two opposite sides of the shed to allow cross ventilation.

How do you attach a louvre air vent to an airbrick? For a straight swap, remove the old airbrick cover and screw or clip this vent into the same fixing holes. For a new opening, bed the vent onto fresh mortar, tap it flush, then point around the edge once the mortar has set.
