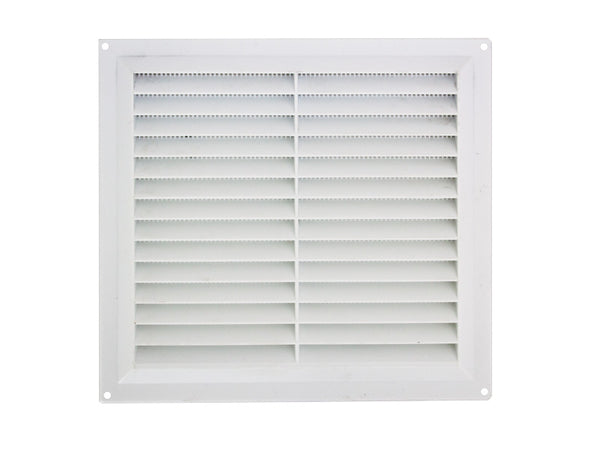

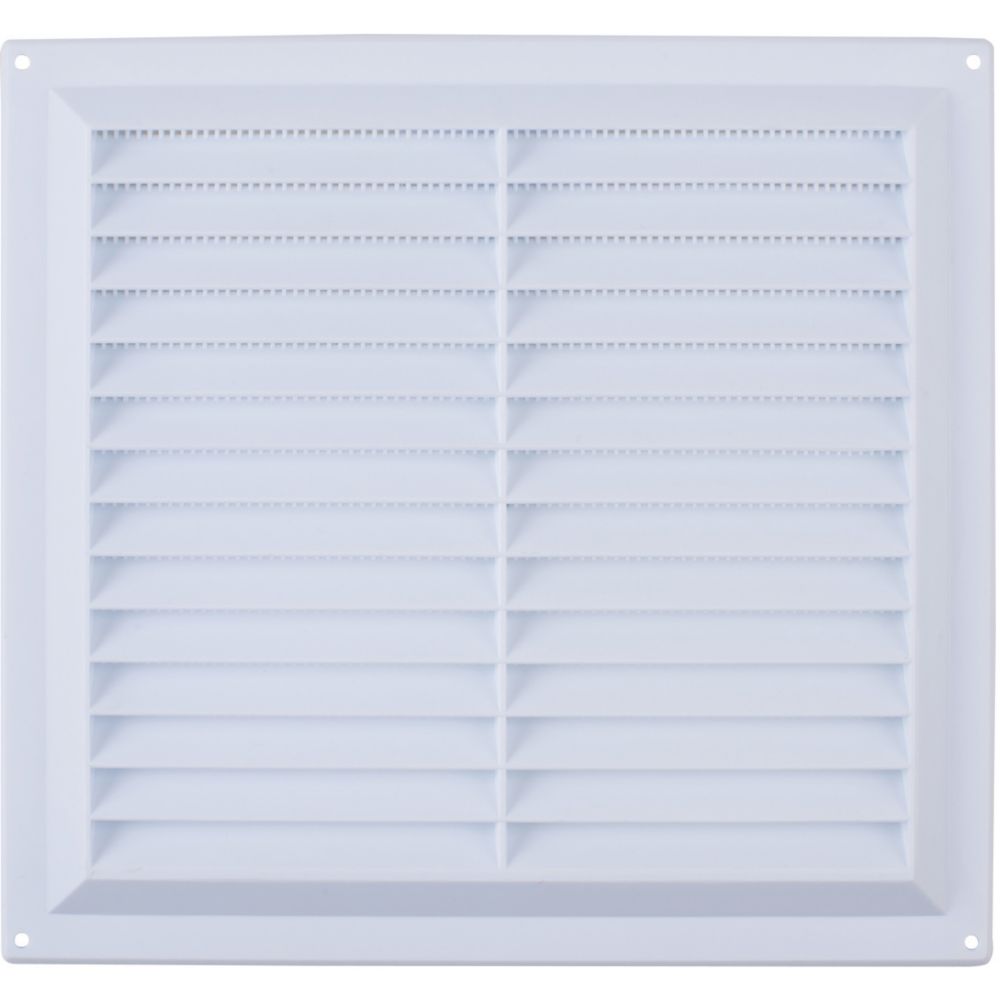

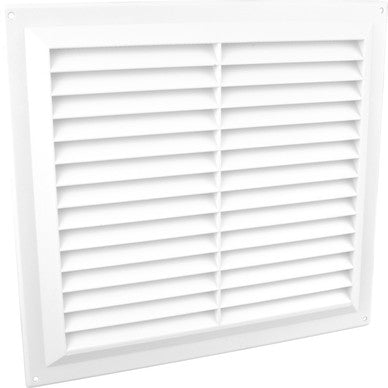

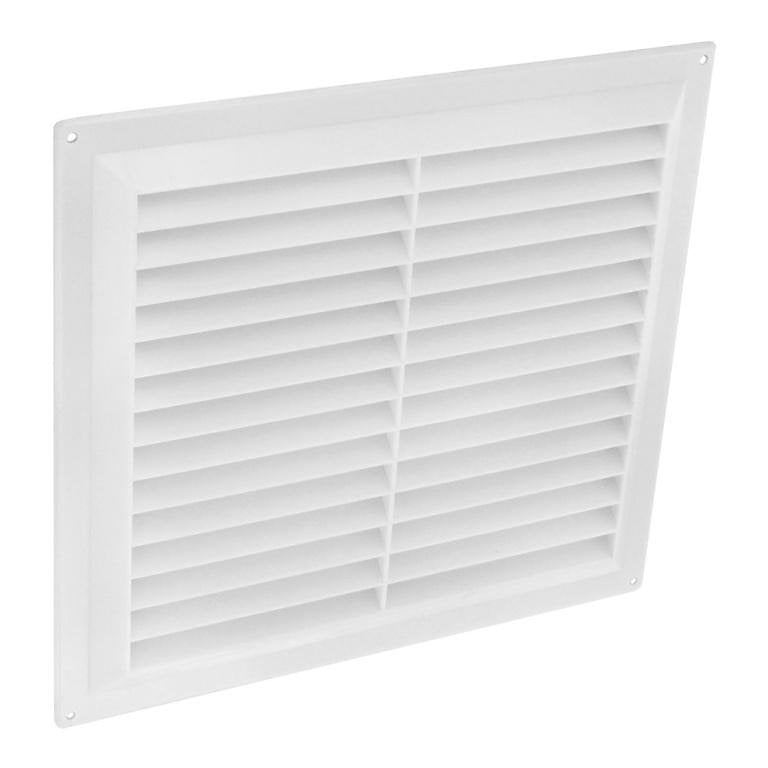

Securit White Plastic Louvre Vent 9 x 9 Inch - Fixed Flyscreen

This Securit white plastic louvre vent is a 9 x 9 inch (approximately 229 x 229mm) ventilation cover, sized to span three brick courses, ideal for airbrick openings, plaster vent frames, or doors that need a higher rate of background airflow. The angled slats let air move freely through the opening in both directions while shedding wind driven rain and blocking leaves and larger debris.

Made from durable white plastic, this louvre vent will not rust or corrode, and being one of the larger standard UK vent sizes it is often specified where UK Approved Document C style background ventilation requirements call for a higher free air space per vent, such as suspended timber floors or larger sub floor voids. It comes fitted with a fixed flyscreen riveted permanently into the vent body, keeping out flies and larger insects while still allowing the mesh to be wiped clean in place. This vent is not suitable for venting gas appliances or flues and is intended for background ventilation purposes only.

Key Features

• Size: 9 x 9 inch (approximately 229 x 229mm) plastic louvre vent cover
• Free air space of 15500 sq mm, the actual open area through which air can pass
• Fixed, non removable flyscreen keeps out flies and larger insects
• White plastic construction, will not rust and needs no painting
• Not suitable for venting gas appliances
• Suitable for both domestic and commercial ventilation projects

How to Use / How to Fit

If you are swapping out an existing airbrick or terracotta frame cover, simply unscrew or unclip the old louvre vent and fit this one using the same fixing holes, keeping the same orientation so the slats continue to shed rain correctly.

If you need to create a brand new opening in a solid wall, chisel or drill away the mortar to form an opening the correct size for a three course vent, bed the vent into fresh mortar, tap it flush with the face of the wall, and point around the edges once the mortar has set to blend it in with the surrounding brickwork. Along a wall, vents are typically spaced roughly every 1.8 to 2 metres, with vents fitted on at least two opposite sides of a building to allow proper cross ventilation under a suspended timber floor.

Technical Specifications

• Size: 9 x 9 inch (approximately 229 x 229mm)
• Free air space: 15500 sq mm
• Material: white plastic
• Flyscreen: fixed, riveted in place, not removable
• Gas appliance suitability: not suitable for gas appliance venting

Frequently Asked Questions

What is a louvre vent and why do I need one?
A louvre vent is a ventilation cover with angled slats that fits into a wall, door, or duct opening. It lets background air circulate through a room or sub floor void, helping to prevent condensation, damp patches, musty smells, and long term timber rot.

Will using louvre vents in a shed stop damp?
Fitting louvre vents into a shed improves air circulation and reduces the moisture build up that leads to damp and mould, particularly in a shed with a timber floor or one used for storage. They work best as part of good overall ventilation rather than as a single fix for a serious existing damp problem.

How do you attach a louvre air vent to a new wall opening?
Cut or drill out an opening of the correct size, remove any loose mortar, bed the vent into fresh mortar so it sits flush with the wall face, then point around the edges once the mortar has gone off to finish it neatly against the surrounding brickwork.

Will a louvre vent keep out mice?
No, the fixed flyscreen on this vent is designed to keep out flies and larger insects only. It will not stop mice, a dedicated fine rodent mesh would be needed behind the vent for that purpose.
